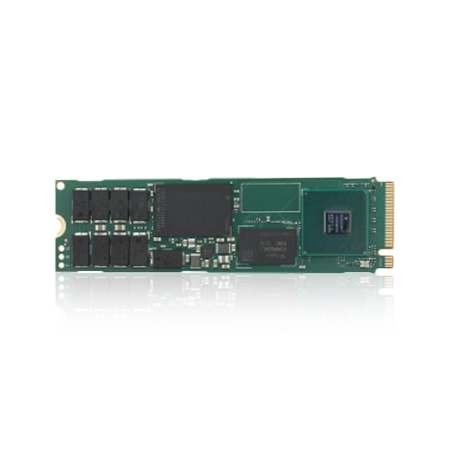

M.2 22110 PCIe SSD

Specification

Model No. PD-1012 PD-10J1
Status Active Active
Grade Industrial Premium Enterprise
Capacity 3840GB 960GB – 3840GB
Interface PCIe® Gen4 3×4 NVMe 1.3 PCIe® Gen4 4×4 NVMe 1.4c
Form Factor M.2 22110-D2-M M.2 22110-M
Flash Type 3D TLC
Max Channel 8
Extended DRAM DDR4
Security TCG OPAL / AES / PYRITE TCG OPAL 2.0 / AES 256
Thermal Sensor – Yes
Sequential
Read/Write ( up to )		 3200 / 1000MB/s 6500 / 2400MB/s
Random
Read/Write ( up to )		 200K/20K IOPS 780K/600K IOPS
Thermal Monitor – YES
Dimension
(LxWxH/mm)		 110 x 22 x 3.5 110 x 22 x 5
Op. Temperature 0°C~70°C / -40°C~85°C 0°C~70°C
Features
  • Power Loss Protection
  • Self Encryption
  • Thermal Monitoring
  • TCG OPAL & Pyrite support
  • Data Destroy,Quick Erase, Write Protect, End to End Data Protection
  • HW PLP with Super Capacitors / Tantalum Capacitors
  • UBER (Unrecovered Bit Error Rate)
  • TruePLP (Power Loss Proterction)
  • End to End Data Protection
  • Ultra Low Latencies
  • RAID Protection
  • Digital Signature
  • Secure Boot
  • Temperature Sensor
Application
